- TFT exposure led lamp
|
 |
Features:
After the resist coating, before exposure filter into the substrate,
LED light will be lighting , Subsidiary CCD camera can stabilize the
capturing pictures. Use the recognized software to identify whether
there is something in the flitter after finishing capturing the
pictures. |
應用場合:
G5，G6 CF厂 |
| Model |
Power Consumption |
Color |
W(g) |

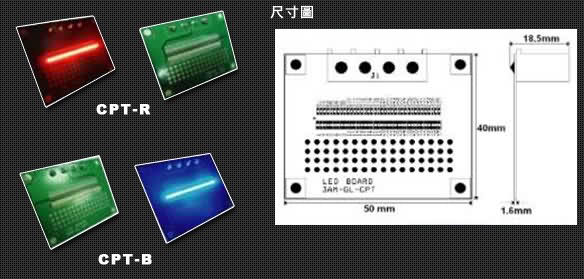

| GL-CPT-R(紅) |
DC5.3V/29.4W |
R |
10 |
| GL-CPT-B(藍) |
DC5.3V/29.4W |
B |
10 |
|
‧Each
machine is for 14 slices when operating is for 12 slices
‧When using chemistry to apply, use LED to exposure
‧Original company using Average longevity is 3 months. When
operating temperature goes up to 85℃, the longevity would diminish.
‧Our company using over 3months. When operating goes up to 72℃,
longevity would be longer.
‧Two kinds of illuminant are used for machine.
‧Original company red light level for 18KLUX and blue light level
for 8KLUX
‧Our company red light level for 36KLUX, blue light for 12KLUX |
|
